Custom Resume And Resubmit

How to use this feature​

From the Invictus Dashboard, navigate to the sidebar, and create a new flow/edit a new flow as in the following images:

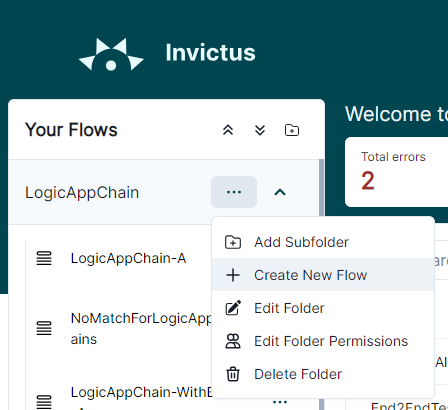

Creating a new flow

Create New Flow example

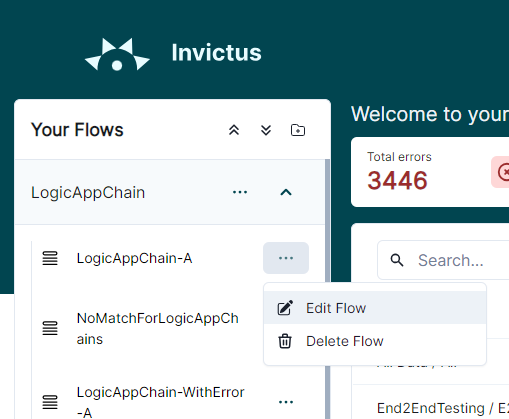

Editing an existing flow

Create New Flow example

Clicking these buttons will redirect you to the create/edit flow page as per below:

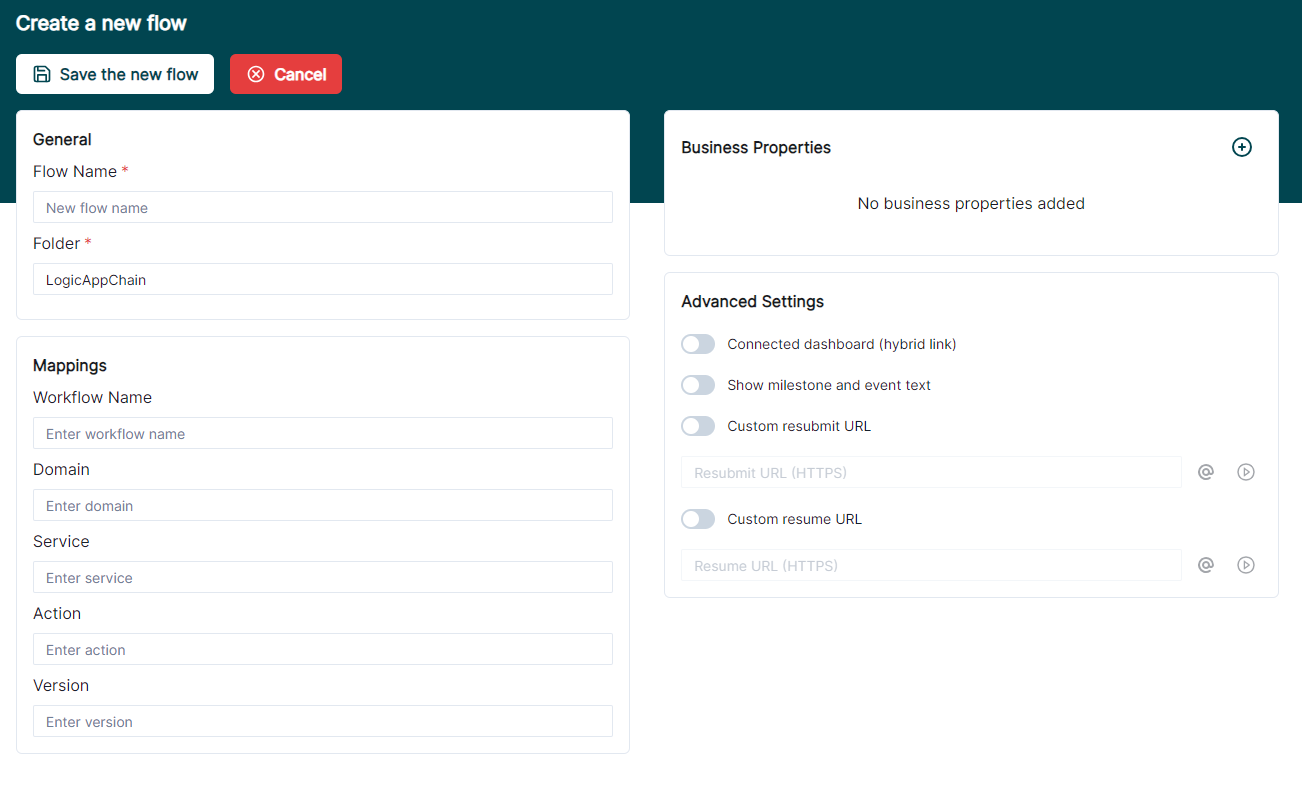

Create/Edit Flow example

We will focus on the Advanced Settings part of the screen, located on the right side of the page. To enable custom resume and resubmit for a flow, simply click the radio buttons of Custom resubmit URL and Custom resume URL respectively:

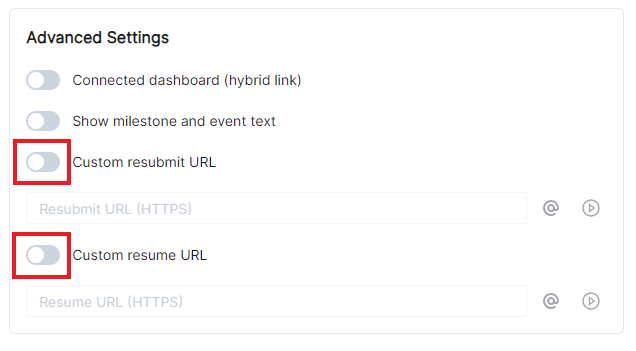

Advanced Settings radio buttons

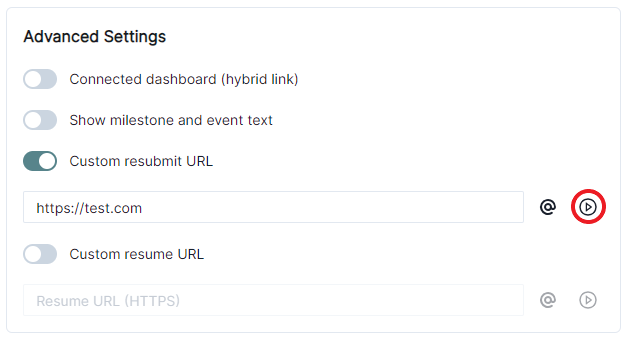

Once enabled, the Resubmit URL (HTTPS) and Resume URL (HTTPS) input fields become editable. Enter a URL in one of the fields to set a Resubmit/Resume URL. The Advanced settings test url button button can be clicked in order to test the entered URL:

Advanced settings test url button demo

Clicking this button will test the URL to see if it is reachable. The URL needs to be an HTTPS URL. A message will be displayed on screen to indicate if the test failed or was successful.

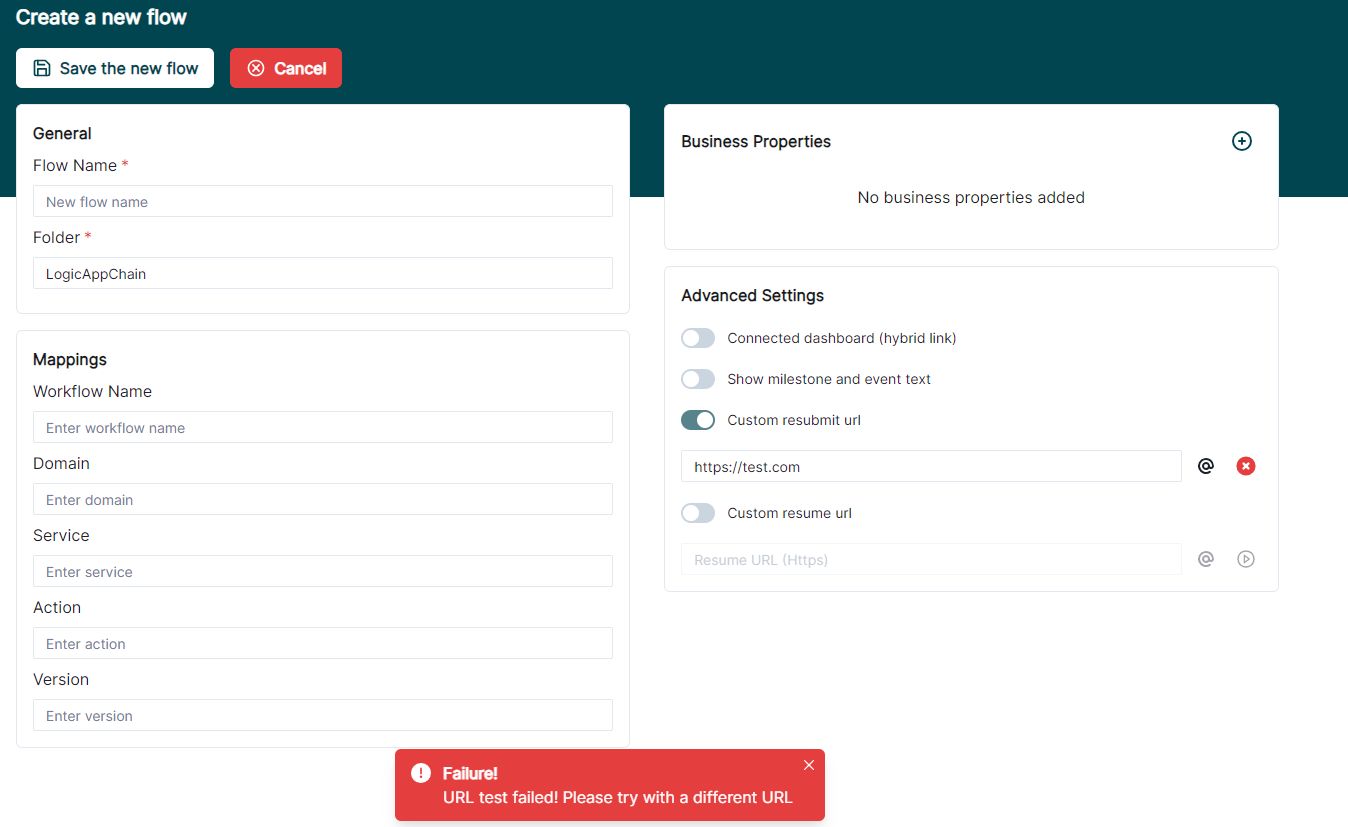

Advanced settings test url failure

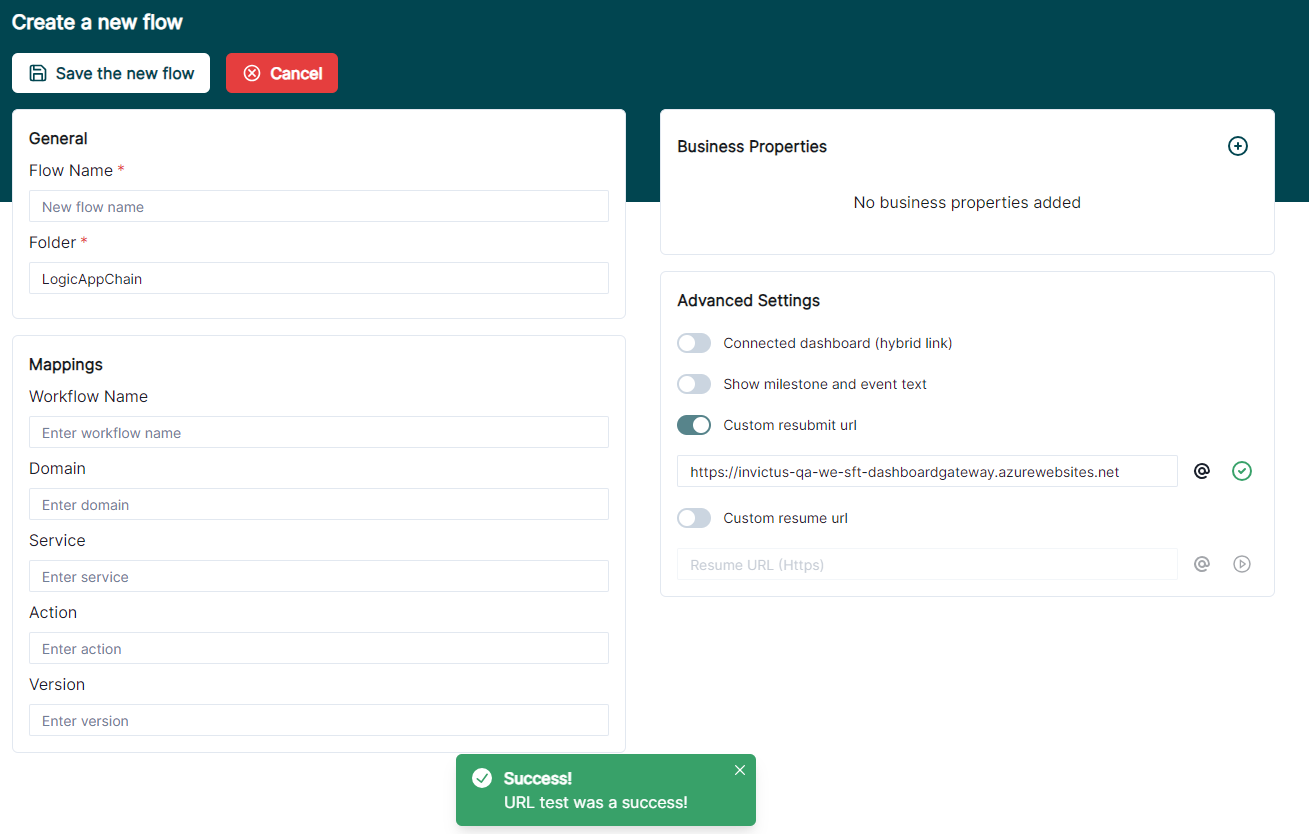

Advanced settings test url success

You may need to use custom HTTP Headers when making the custom resubmit/resume request. To edit the HTTP headers, click the Advanced settings headers button button to open the HTTP headers dialog box.

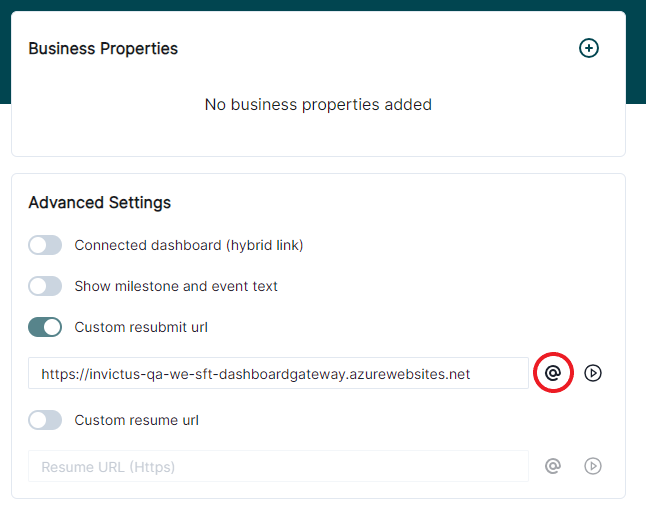

Advanced settings headers button demo

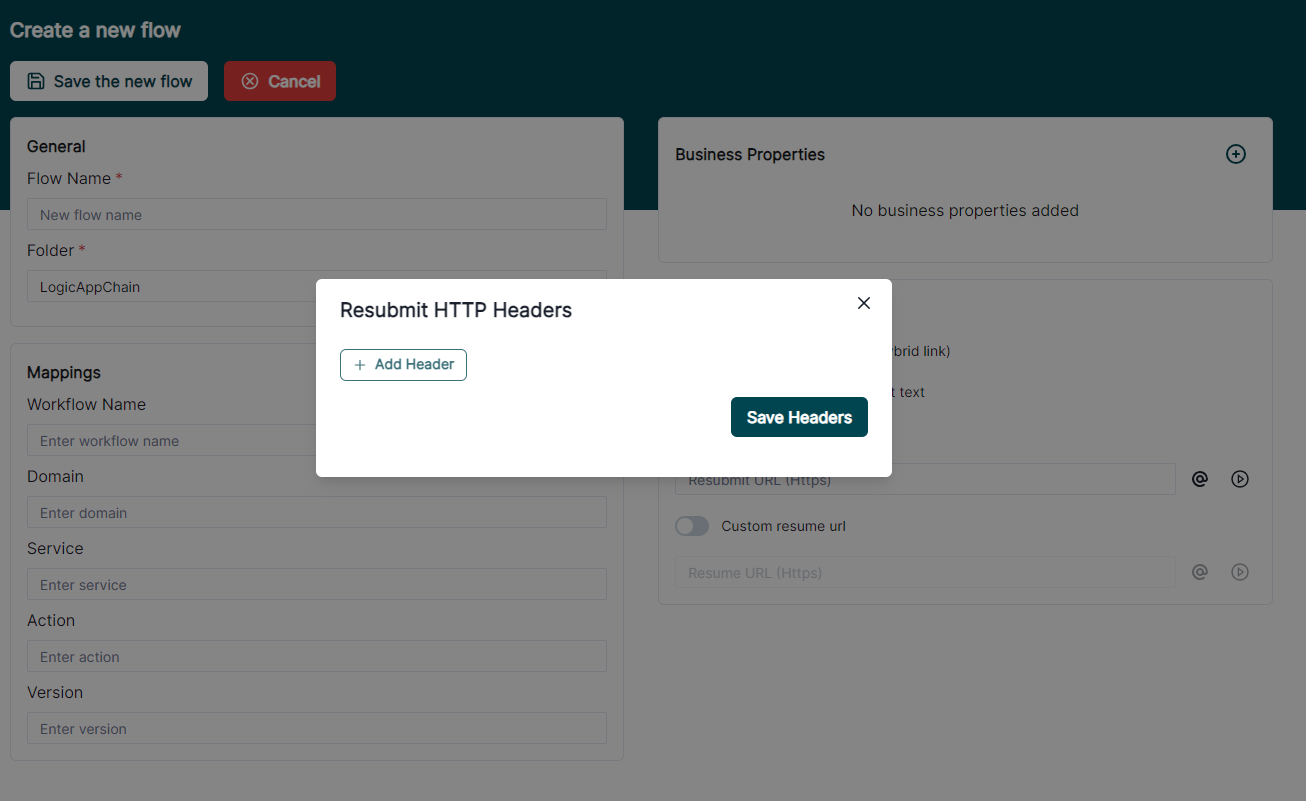

Advanced settings headers dialog

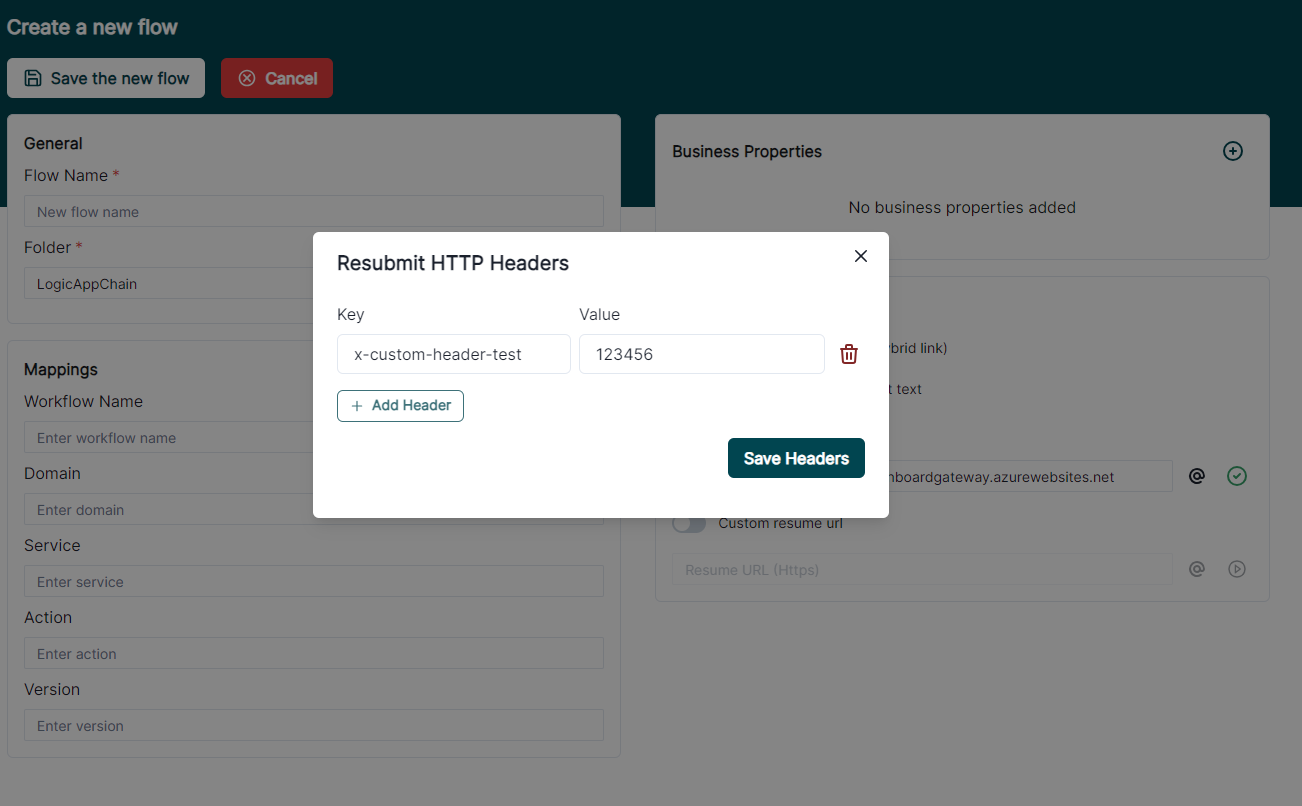

In this dialog, click the Add Header button to enter the HTTP headers. A header consists of a key and a value. Click the Advanced settings headers dialog inputted header delete button button to delete a header. Click the Save Headers button to save the headers. Duplicate keys will automatically be removed when this button is clicked.

Advanced settings headers dialog inputted header

Once comfortable with the changes, do not forget to fill in the necessary inputs in the page and Save the flow.

Resubmitting/Resuming a flow​

Once a flow has been created, simply click a flow from the sidebar.

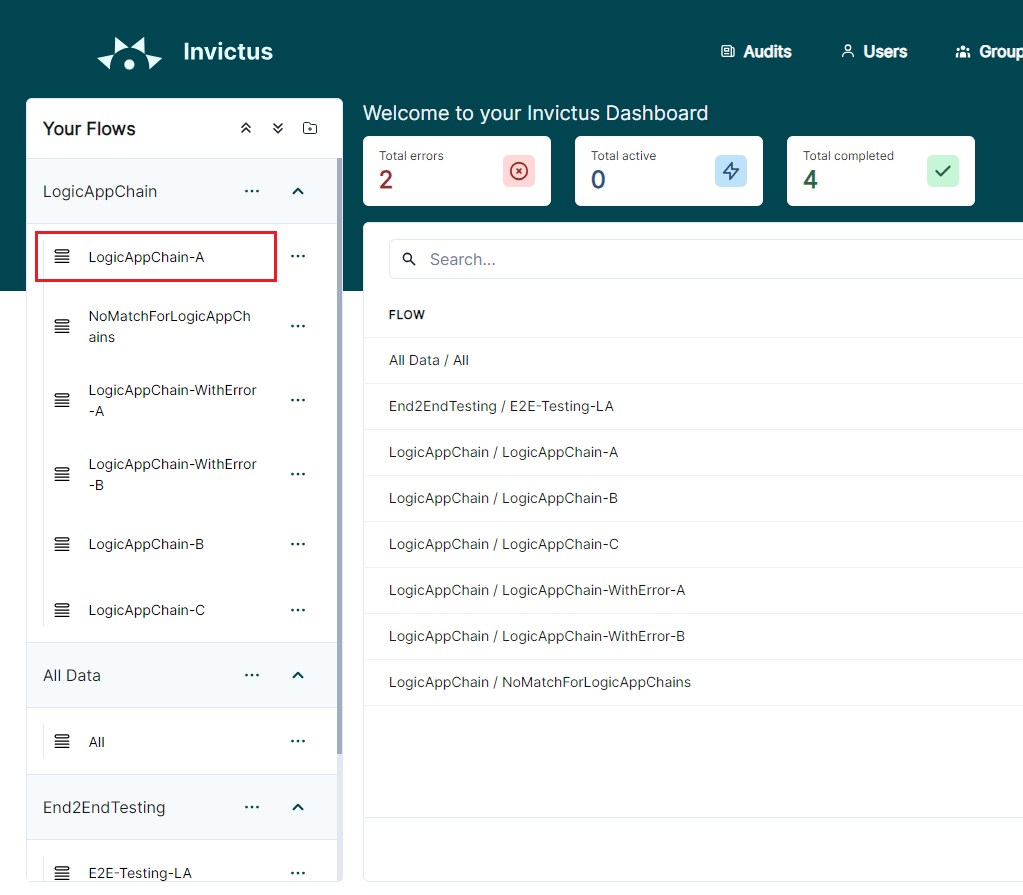

Clicking a flow from the sidebar

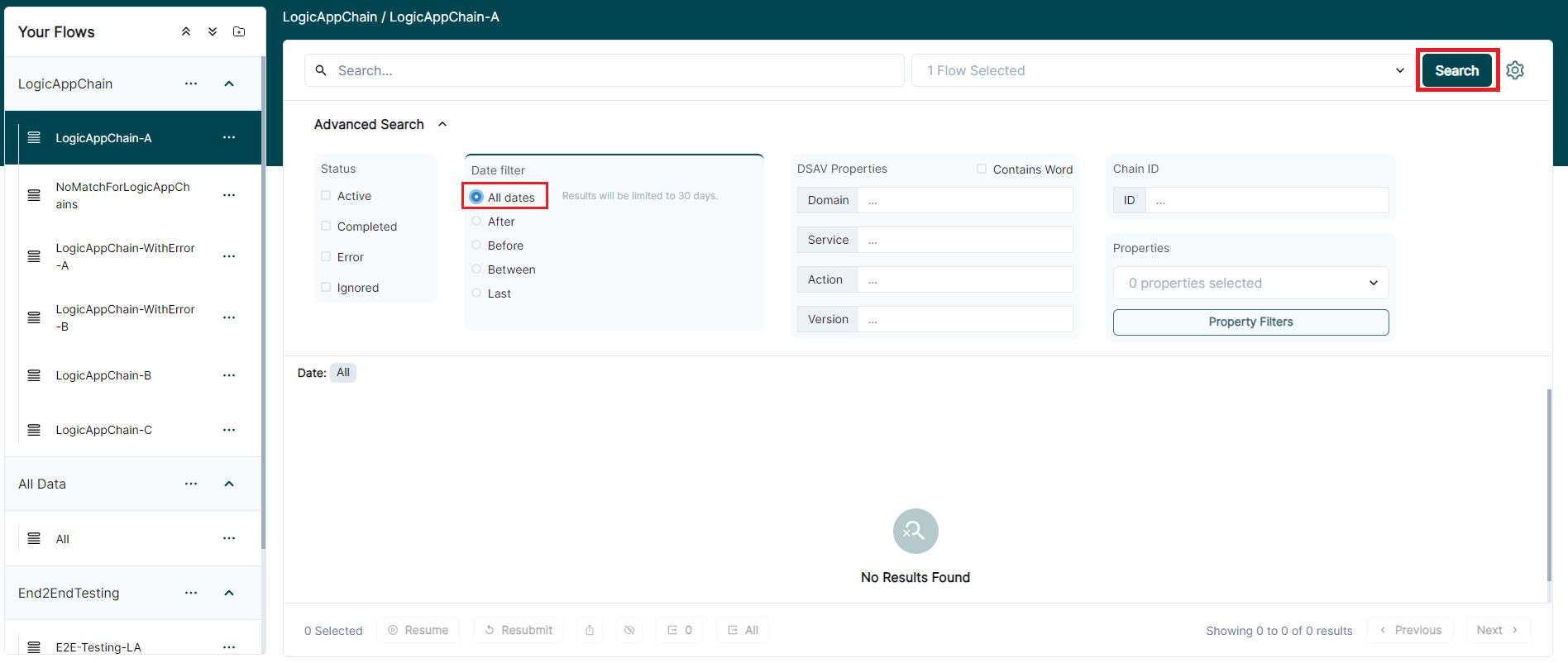

In order to resubmit/resume a flow, some flow data must be present. You may need to change some filters from the Advanced search menu and click the Search button in order to show some flow data:

Change filters to show flow data

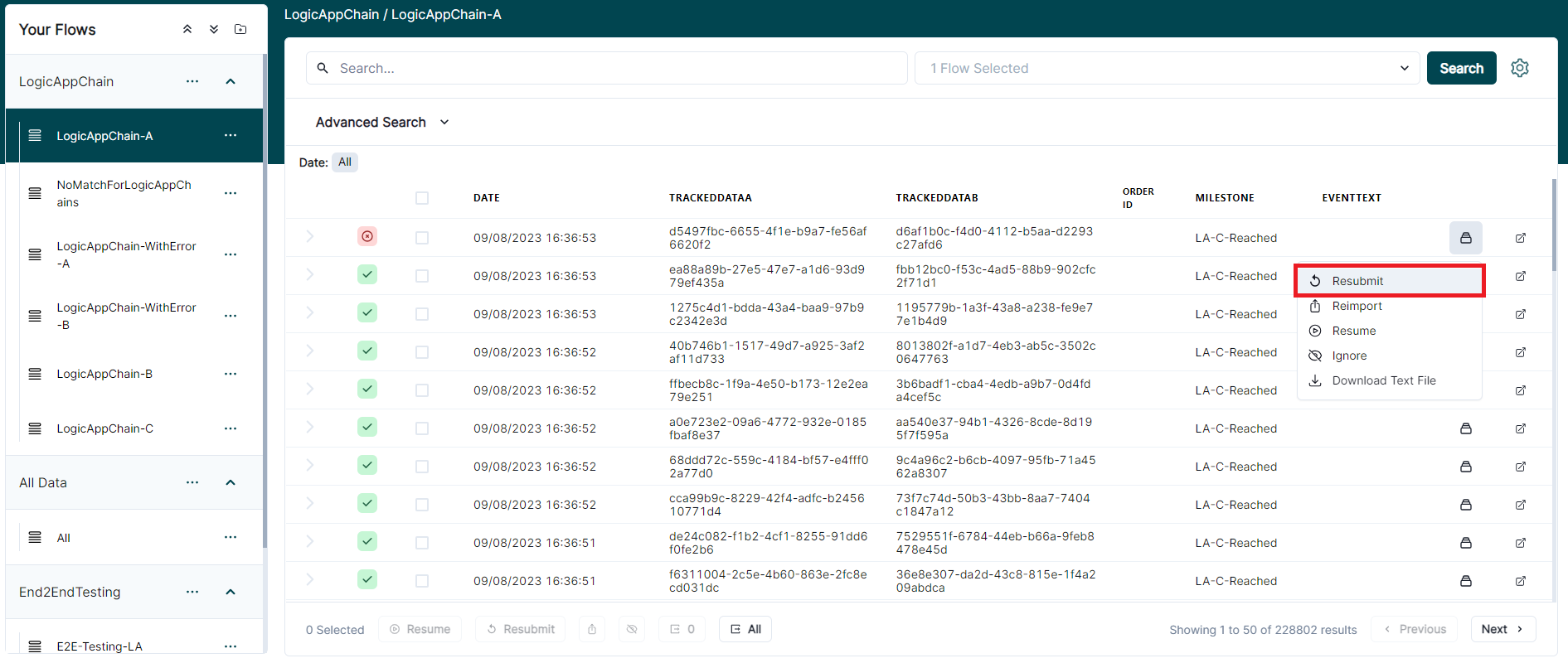

If some data is visible, click the Flow Actions button on a flow run, and click Resubmit:

Clicking resubmit on a flow run

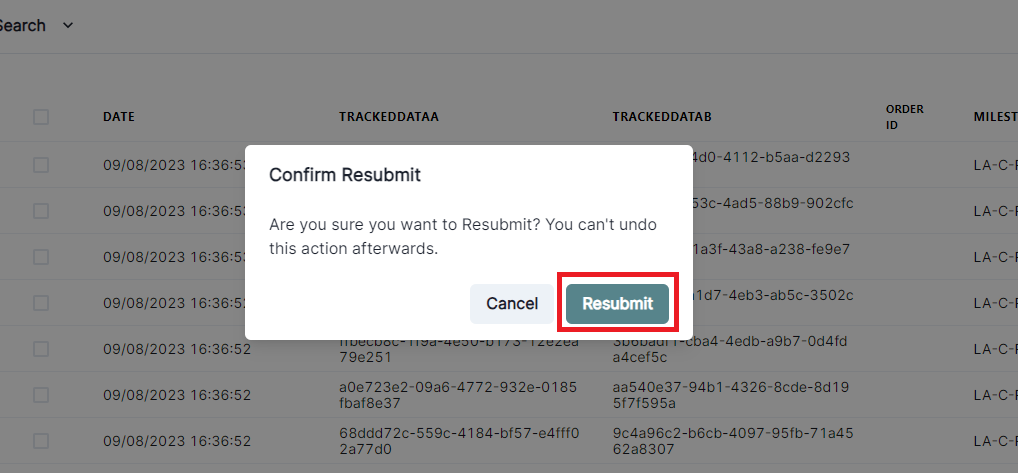

Confirm the resubmit by clicking the Resubmit button in the dialog that appears:

Confirming resubmit for a flow run

A POST request will be sent to the configured custom resubmit URL, with a body containing information about the flow run. Below is an example of the body:

[
  {
    "id": "64d206051178624d80f70775",
    "workflowEventId": "1f8be9e8-dc61-41c5-9146-13ce087cbc08",
    "partitionKey": "02c1eacb-60a9-4fa9-937f-971b10f567d4",
    "workFlowRunId": "08585101213801371750243005842CU150",
    "dateInserted": "2023-08-07T09:08:21.028Z",
    "parentWorkFlowRunId": "",
    "chainId": "439f11e1-739e-461e-b785-f7adad7ff876",
    "executionTime": "2023-08-08T09:05:05.372Z",
    "appName": null,
    "workflowName": "someworkflow",
    "statusId": 2,
    "subscriptionId": "07459384-7900-43c9-b940-8f90d6ab3c7c",
    "resourceGroupName": "someresourcegroup",
    "triggerName": "manual",
    "userStatus": 1,
    "workFlowActionCount": 10,
    "errorInfo": "",
    "properties": {
      "x_iv_enqueued_time": "08/07/2023 09:07:06 +00:00",
      "x_iv_importjob_pickuptime": "08/07/2023 09:07:06",
      "Domain": "SomeDomain",
      "Service": "SomeService",
      "Action": "SomeAction",
      "Version": "1.0"
    },
    "source": "1",
    "eventText": "Some Event Text",
    "messageContentView": null,
    "actionName": null
  }
]
